Glycol Dehydration & Hydrocarbon Dew Point Depression System

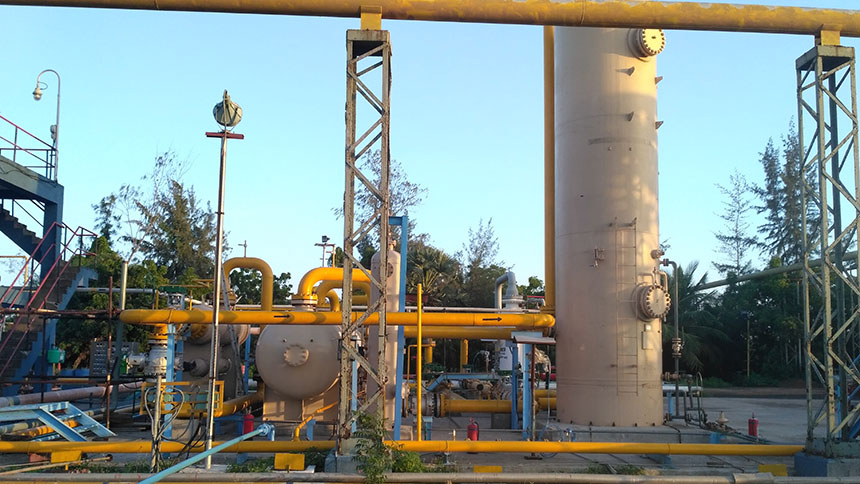

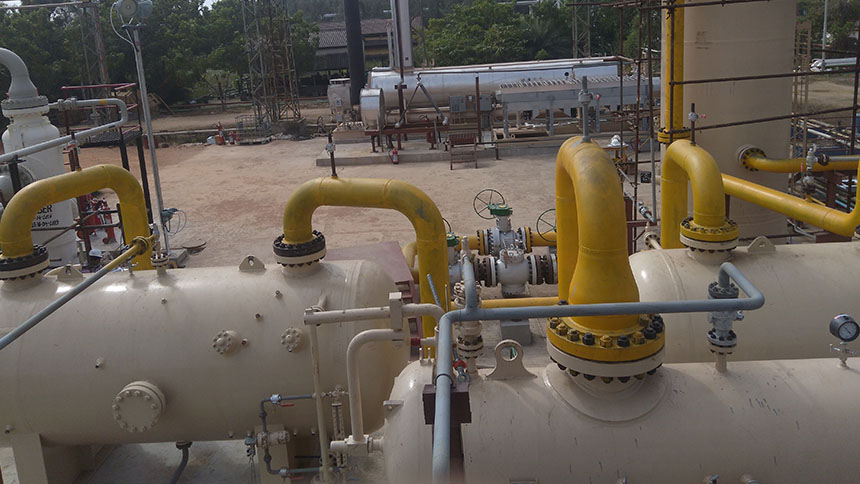

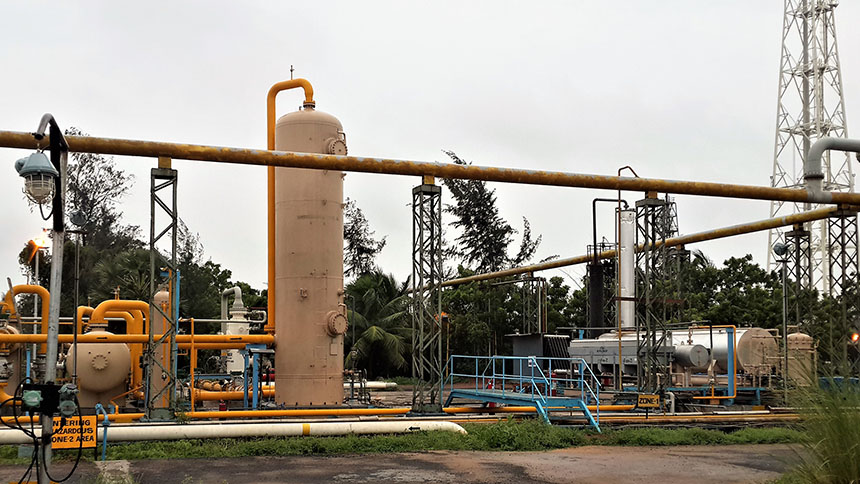

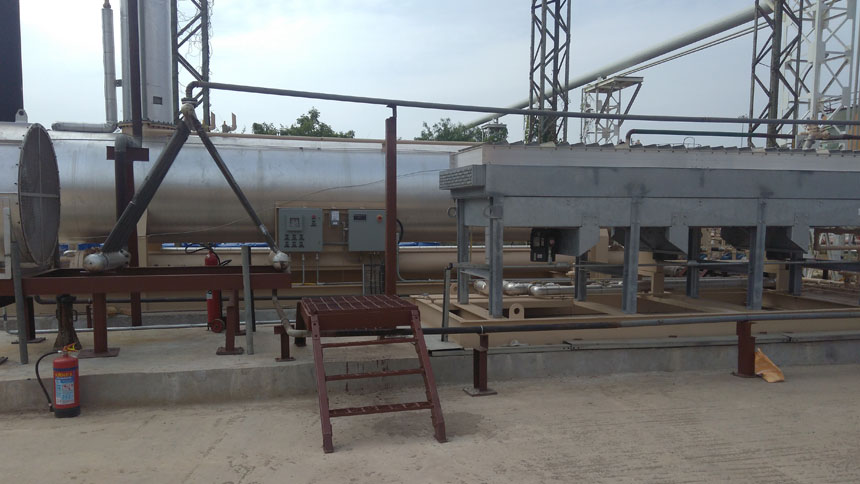

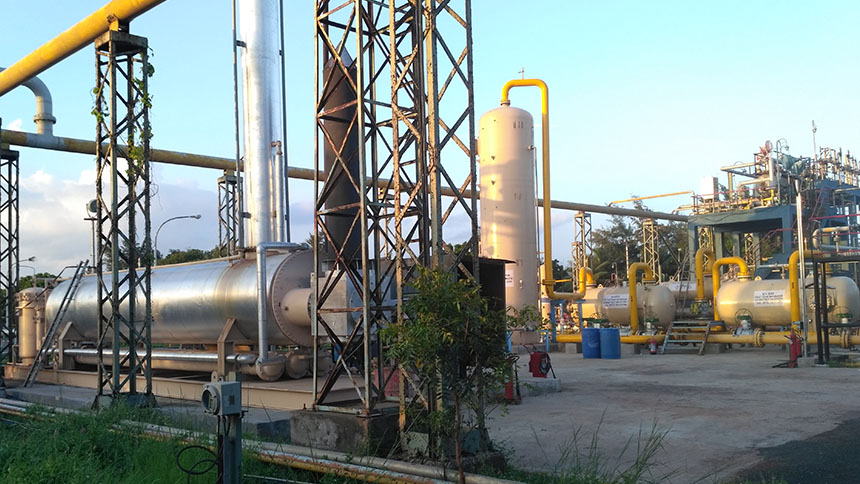

John Energy has erected and is operating the Gas De-hydration plant. GLYCOL DEHYDRATION SYSTEM is a liquid desiccant system is used for the removal of water from natural gas and natural gas liquid. It is the most common and economical means of water removal from these gases. The purpose of a glycol dehydration unit is to remove water from natural gas and natural gas liquids, when produced from a reservoir.

Plant Specifications

Plant Parameters	Gas Dehydration Plant Odalarevu, Kakinada, Andhra Pradesh, India	NARSAPUR Gas Dehydration Plant, Andhra Pradesh, India
Gas handled	HP Gas	HP Gas
Type of Unit	Glycol Dehydration Unit	Glycol Dehydration & Hydrocarbon Dew Point Depresion System
Make of Plant	Gas Technology Corporation (USA)	Gas Technology Corporation (USA)
Model	Gas Technology GDU-30.0	Gas Technology GDU-2.5
Capacity	30.0 MMSCMD	200000 SCMD
Pressure	782 psig (55 kg)	782 psig (55 kg)
Temperature	55 °C	55 °C
Pressure Drop Across GDU	21.3 psig (1.5 kg/cm2)	28.4 psig (2 kg/cm2)
Capacity (Contractual Quantity)	2500000 SCMD	200000 SCMD
Inlet Gas Pressure	51.5 (kg/cm2)	57 (kg/cm2)
Inlet Gas Temperature	25/50 (°C)	25/50 (°C)
Outlet Gas Pressure	50 kg/cm2	55 kg/cm2
Outlet Gas Temperature	40 (°C)	55 (°C)
Contractual Quantity (Operating)	2500000 SCMD	200000 SCMD

Plant Parameters	MORI Gas Dehydration Plant, Andhra Pradesh, India	PASARLAPUDI Gas Dehydration Plant, Andhra Pradesh, India
Gas handled	HP Gas	HP Gas
Type of Unit	Glycol Dehydration & Hydrocarbon Dew Point Depresion System	Glycol Dehydration & Hydrocarbon Dew Point Depresion System
Make of Plant	Gas Technology Corporation (USA)	Gas Technology Corporation (USA)
Model	Gas Technology GDU-3.5 X 2	Gas Technology GDU-5.0
Capacity	350000 SCMD X 2	500000 SCMD
Pressure	782 psig (55 kg)	782 psig (55 kg)
Temperature	55 °C	55 °C
Pressure Drop Across GDU	28.4 psig (2 kg/cm2)	28.4 psig (2 kg/cm2)
Capacity (Contractual Quantity)	2500000 SCMD	2500000 SCMD
Inlet Gas Pressure	57 (kg/cm2)	57 (kg/cm2)
Inlet Gas Temperature	25/50 (°C)	25/50 (°C)
Outlet Gas Pressure	55 kg/cm2	55 kg/cm2
Outlet Gas Temperature	55 (°C)	55 (°C)
Contractual Quantity (Operating)	700000 SCMD	500000 SCMD

Plant Parameters	MANDAPETA Gas Dehydration Plant, Andhra Pradesh, India	KESANAPALLI Gas Dehydration Plant, Andhra Pradesh, India
Gas handled	HP Gas	HP Gas
Type of Unit	Glycol Dehydration & Hydrocarbon Dew Point Depresion System	Glycol Dehydration & Hydrocarbon Dew Point Depresion System
Make of Plant	Gas Technology Corporation (USA)	Gas Technology Corporation (USA)
Model	Gas Technology GDU-3.5 X 3	Gas Technology GDU-5.0
Capacity	350000 SCMD X 3	500000 SCMD
Pressure	782 psig (55 kg)	782 psig (55 kg)
Temperature	55 °C	55 °C
Pressure Drop Across GDU	28.4 psig (2 kg/cm2)	28.4 psig (2 kg/cm2)
Capacity (Contractual Quantity)	2500000 SCMD	2500000 SCMD
Inlet Gas Pressure	57 (kg/cm2)	57 (kg/cm2)
Inlet Gas Temperature	25/50 (°C)	25/50 (°C)
Outlet Gas Pressure	55 kg/cm2	55 kg/cm2
Outlet Gas Temperature	55 (°C)	55 (°C)
Contractual Quantity (Operating)	1050000 SCMD	500000 SCMD

Plant Parameters	TATIPAKA Gas Dehydration Plant, Andhra Pradesh, India	ENDAMURU Gas Dehydration Plant, Andhra Pradesh, India
Gas handled	HP Gas	HP Gas
Type of Unit	Glycol Dehydration & Hydrocarbon Dew Point Depresion System	Glycol Dehydration & Hydrocarbon Dew Point Depresion System
Make of Plant	Gas Technology Corporation (USA)	Gas Technology Corporation (USA)
Model	Gas Technology GDU-3.5	Gas Technology GDU-2.0
Capacity	350000 SCMD	200000 SCMD
Pressure	782 psig (55 kg)	782 psig (55 kg)
Temperature	55 °C	55 °C
Pressure Drop Across GDU	28.4 psig (2 kg/cm2)	28.4 psig (2 kg/cm2)
Capacity (Contractual Quantity)	2500000 SCMD	2500000 SCMD
Inlet Gas Pressure	57 (kg/cm2)	57 (kg/cm2)
Inlet Gas Temperature	25/50 (°C)	25/50 (°C)
Outlet Gas Pressure	55 kg/cm2	55 kg/cm2
Outlet Gas Temperature	55 (°C)	55 (°C)
Contractual Quantity (Operating)	350000 SCMD	200000 SCMD
